testo 174H with USB-C and PC Software
Descriptions

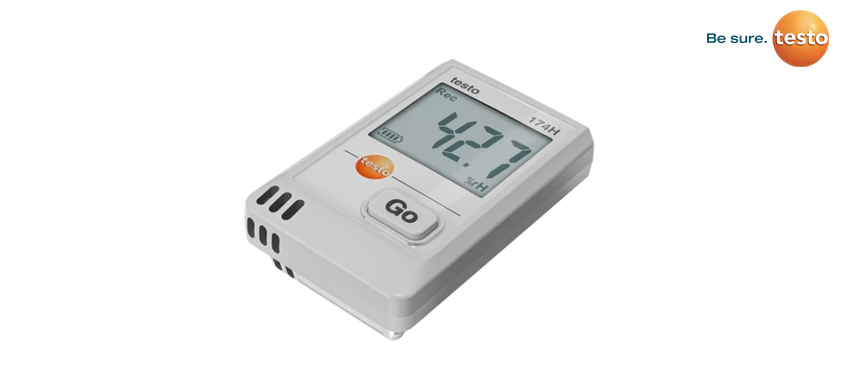

testo 174 H – Mini data logger for temperature and humidity with USB-C and PC Software

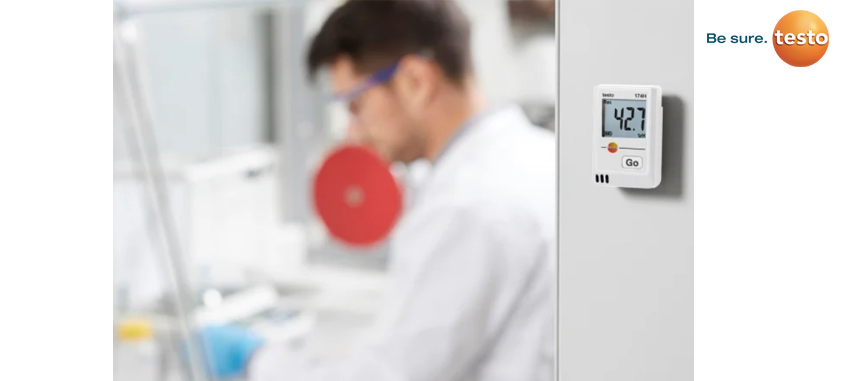

The testo 174 H mini data logger is suitable for monitoring the storage of temperature and humidity-sensitive goods such as food or in archives, as well as for monitoring the indoor climate. It reliably records temperature and humidity within a measuring range of -20 °C to +70 °C, displays current values and limit value violations and stores up to 16,000 readings. With user-friendly programming and evaluation via professional software, including Excel export and PDF reporting, it provides accurate and convenient monitoring and documentation.
Your advantages

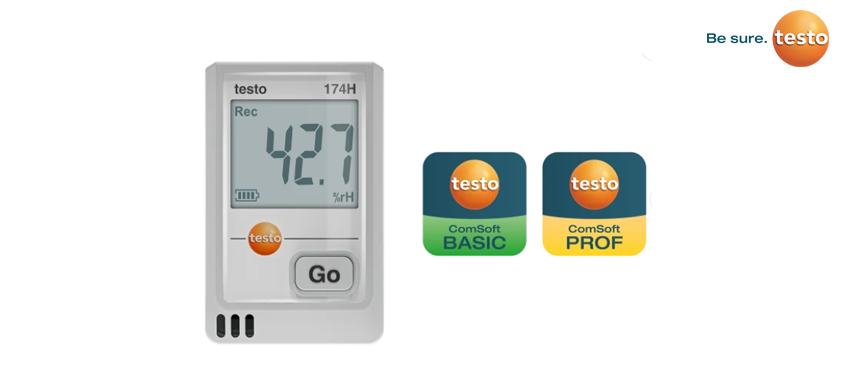

• Professional software with Excel export function for programming the logger and for data analysis, as well as for creating reports in PDF format
• Wide temperature measuring range from -20 °C to +70 °C
• Secure automatic data backup when the battery is empty or during a battery change
• Convenient measurement data storage for up to 16,000 readings
| Technical data | |
| Temperature – NTC | |
| Measuring range | -20 to +70 °C |
| Accuracy | ±0.5 °C (-20 to +70 °C) |
| Resolution | 0.1 °C |
| Humidity – Capacitive | |
| Measuring range | 0 to 100 %RH* |
| Accuracy | ±3 %RH (2 to 98 %RH) |
| ±0.03 %RH/K | |
| Resolution | 0.1 %RH |
| * Not for condensing atmospheres. | |
| General technical data | |
| Weight | 35 g |
| Dimensions | 60 x 38 x 18.5 mm |
| Operating temperature | -20 to +70 °C |
| Product-/housing material | Plastic |
| Protection class | IP20 |
| Channels | 2 internal |
| Product colour | White |
| Standards | HACCP International |
| Measuring rate | 1 min – 24 h |
| Battery life | 1 year (15 min measuring cycle, +25 °C) |
| Battery type | 2 lithium batteries (CR2032) |
| Memory | 16,000 measuring values |
| Storage temperature | -40 to +70 °C |
