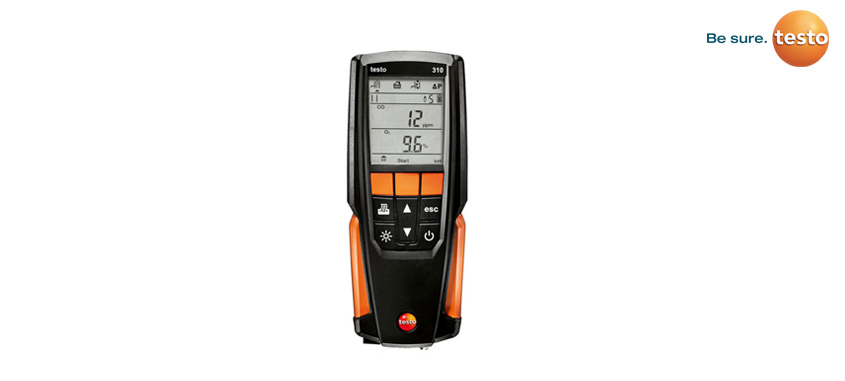

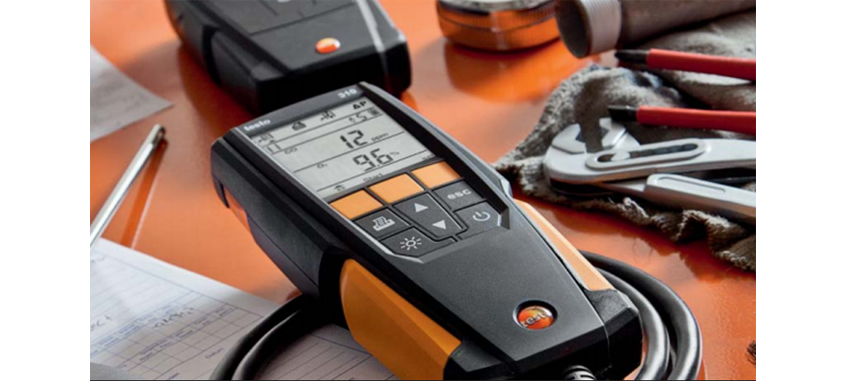

testo 310 – Flue Gas Analyzer
Product Descriptions

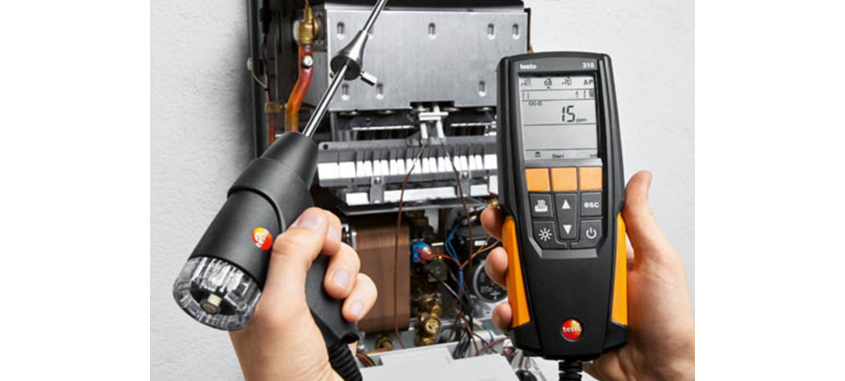

Whether you wish to carry out complex flue gas analysis, check the basic settings of a newly installed system, or provide customer service maintenance on a heating system: With the four measurement menus of the testo 310, for flue gas, ambient CO, draught and differential pressure, you are optimally equipped for the basic measurements on any heating system.
| Technical Data | |
| General technical data | |
| Weight | (with probe) Approx. 700 g |
| Dimensions | 201 x 83 x 44 mm |
| Operating temperature | -5 to +45 °C |
| Display type | LCD (Liquid Crystal Display) |
| Display function | Backlit 2-line display |
| Power supply | Battery: 1500 mAh, mains unit 5V/1A |
| Storage temperature | -20 to +50 °C |
| Temperature – TC Type K (NiCr-Ni) | |
| Measuring range | -20 to +100 °C |
| Accuracy | ±1 °C |
| Resolution | 0.1 °C |
| Reaction time | < 50 s |
| Temperature (ambient temperature) | |
| Temperature – TC Type J (Fe-CuNi) | |
| Measuring range | 0 to +400 °C |
| Accuracy | ±1 °C (0 to +100 °C) |
| ±1.5 % of mv (> 100 °C) | |
| Resolution | 0.1 °C |
| Reaction time | < 50 s |
| Temperature (flue gas) | |
| Flue gas O₂ | |
| Measuring range | 0 to 21 Vol.% |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
| Reaction time t₉₀ | 30 s |
| Differential Pressure flue gas Draught – Piezoresistive | |
| Measuring range | -20 to +20 hPa |
| Accuracy | ±0.03 hPa (-3.00 to +3.00 hPa) |
| ±1.5 % of mv (Remaining Range) | |
| Resolution | 0.01 hPa |
| Flue gas degree of effectivity, Eta (calculated) | |
| Measuring range | 0 to 120 % |
| Resolution | 0.1 % |
| Flue gas loss (calculated) | |
| Measuring range | 0 to 99.9 % |
| Resolution | 0.1 % |
| Flue gas CO₂ calculation (calculated from O₂) | |
| Measuring range | 0 to CO₂ max (Display range) |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
| Reaction time t₉₀ | < 40 s |
| Pressure measurement | |
| Measuring range | -40 to +40 hPa |
| Accuracy | ±0.5 hPa |
| Resolution | 0.1 hPa |
| Flue gas CO (without H₂-compensation) | |
| Measuring range | 0 to 4000 ppm |
| Accuracy | ±20 ppm (0 to 400 ppm) |
| ±5 % of mv (401 to 2000 ppm) | |
| ±10 % of mv (2001 to 4000 ppm) | |
| Resolution | 1 ppm |
| Reaction time t₉₀ | 60 s |
| Ambient CO | |
| Measuring range | 0 to 4000 ppm |
| Accuracy | ±20 ppm (0 to 400 ppm) |
| ±5 % of mv (401 to 2000 ppm) | |
| ±10 % of mv (2001 to 4000 ppm) | |
| Resolution | 1 ppm |
| Reaction time | 60 s |
