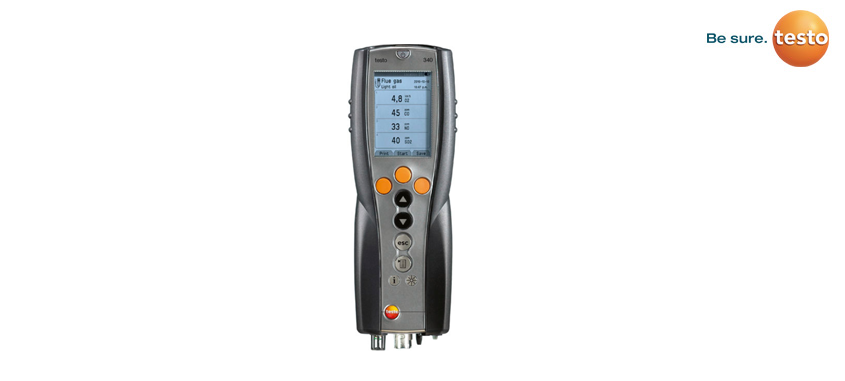

testo 340 – Flue gas analyzer
Product Descriptions

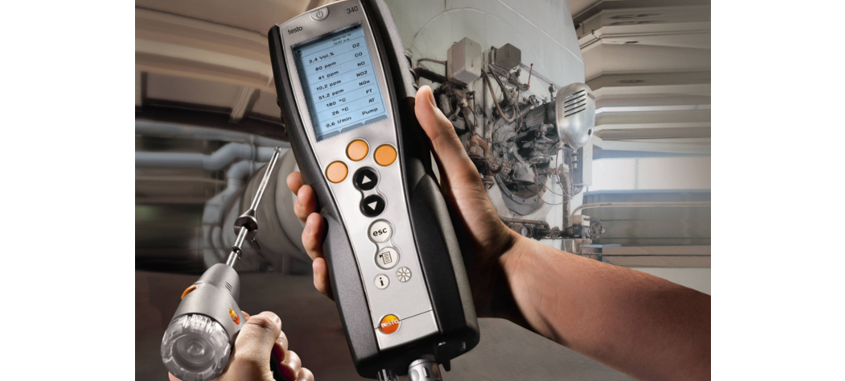

The handy, easy-to-operate emission measuring instrument testo 340 is the right tool for many different emission measurements. The compact design and the reliable technology make it the ideal measuring instrument for commissioning, service and maintenance work and in test measurements on industrial burners, stationary industrial engines, gas turbines and thermal processes.

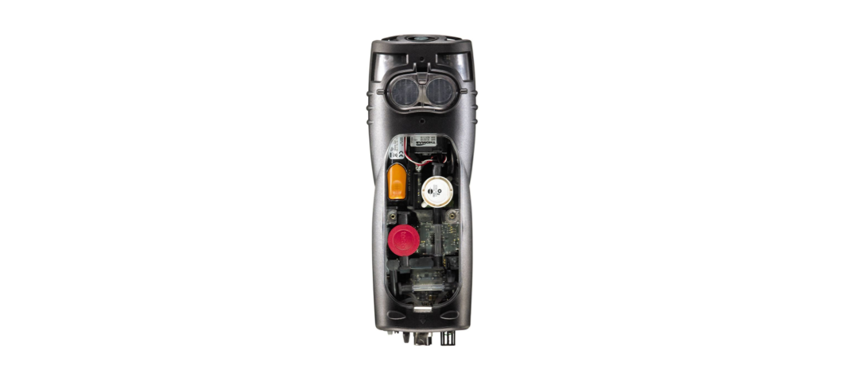

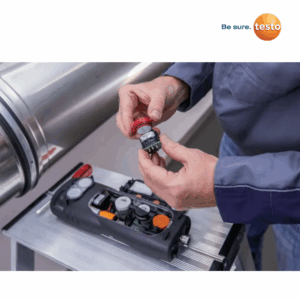

The unique measuring range extension allows unrestricted measurements to be carried out even at high gas concentrations. The testo 340 is equipped with an O2 sensor as standard. Three further gas sensors can be configured individually, in order to be able to adapt the instrument optimally to the respective measurement task. The instrument can also be operated remotely from your Andrroid Smartphone or tablet using the free App.
The Testo 340 is the ideal tool for service, maintenance and inspections
– The Testo 340 allows efficient commissioning, tuning, efficiency optimization and troubleshooting when servicing industrial burners. The robust housing with impact protection enables the use in the rough daily work.
– The Testo 340 supports inspections and tuning work on stationary industrial engines. The separate NO and NO2measurement allows a real NOx measurement. The highly-resistant flue gas probes for industrial engines are specially designed for this application.
– To reduce emissions from gas turbines, CO and NO measurements using Testo 340 in low ranges are necessary. The COlowand NOlow sensors are ideally suited to this task.

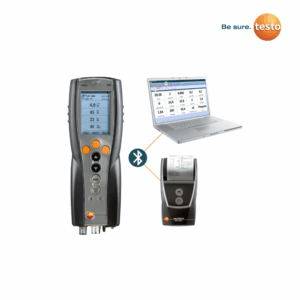

Data interfaces
It is easy to control measurements, read out, transfer and print measurement data. These data interfaces are selectable for easy communication and data transfer:
– Bluetooth® 2.0 (up to 10 m without obstruction)
– USB
– Infrared interface (Communication with the Testo printer)
With the software “EasyEmission” you are able to read out, edit, archive and manage the data.
– Display: Graphic display 160 x 240 pixels
– Storage temperature: -20 … +50 °C
– Operating temperature: -5 … +50 °C
– Weight: 960 g
– Dimensions: 283 x 103 x 65 mm
– Material/Housing: TPE PC
