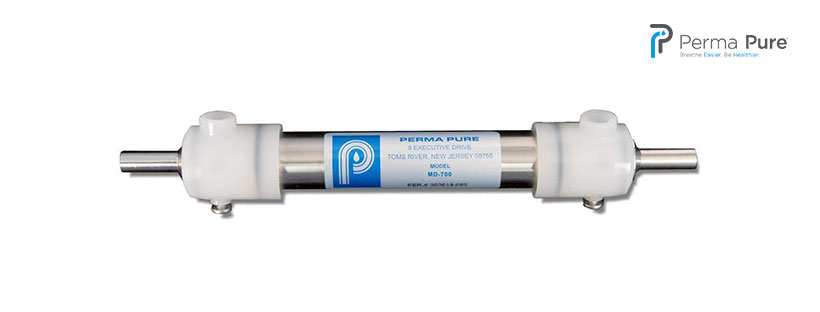

Monotube Dryer 700 (MD-700)
Product Descriptions
Control Humidity of Your Aerosol Samples Without Particle Losses

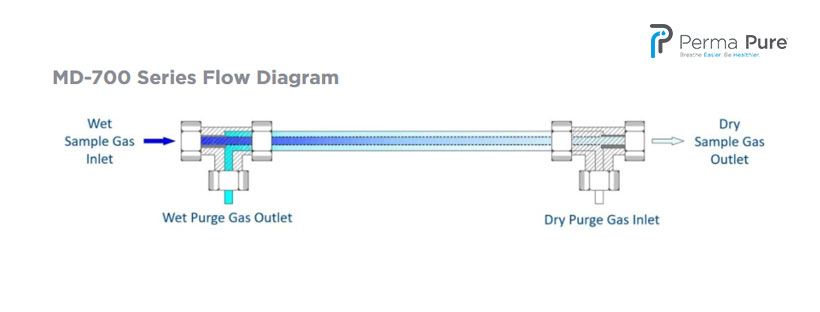

The MD‐700 has been specifically developed for humidity control in particle measurement and aerosol analysis applications. In order to minimize particle losses, a laminar sample flow should be maintained through the flow path of the dryer. The MD‐700 addresses these performance needs while providing the moisture removal necessary to make accurate measurements across a wide range of flow rates. All moisture is removed in the vapor phase with a purge gas flow
• Low particle losses due the large diameter 17mm (0.700”) Nafion™ tubing used in the design
• Eliminates the need for heating the sample gas stream, preserving the volatile particulate component
• Grounded Stainless Steel Tube and Shell Construction eliminates buildup of static electricity and provides long service life outdoors
• Straight Configuration in 6,12, 24, and 48 inch versions minimizes turbulent flow that causes losses
• Dryer is continuously regenerating, eliminating the need to repeatedly replace desiccant
• Designed to be used with the vacuum reflux purge gas method where no dry or instrument air is available.
