testo 510 – Differential Pressure
Product Descriptions

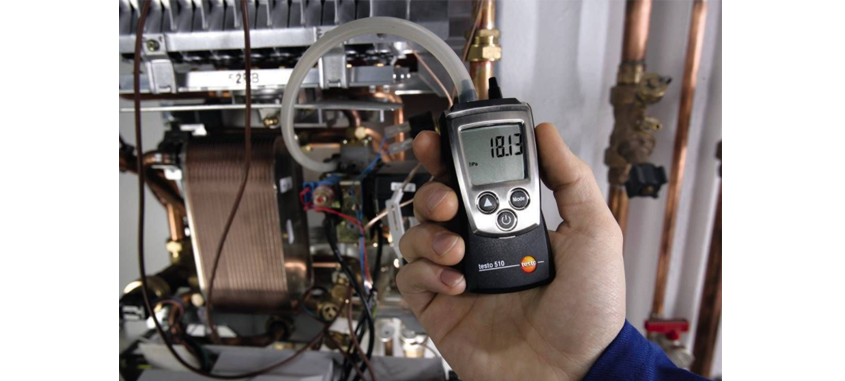

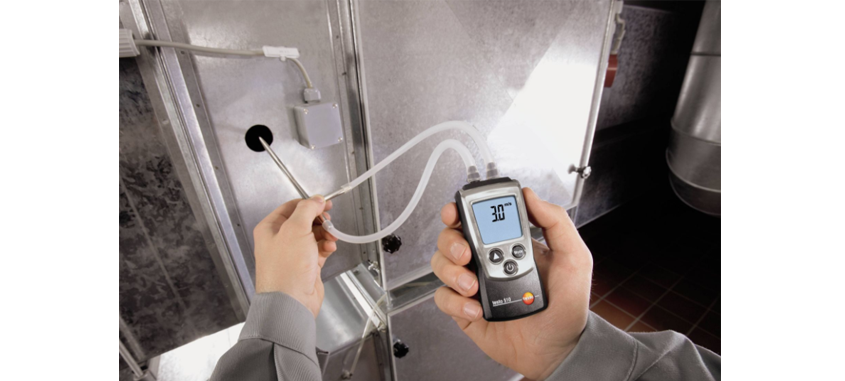

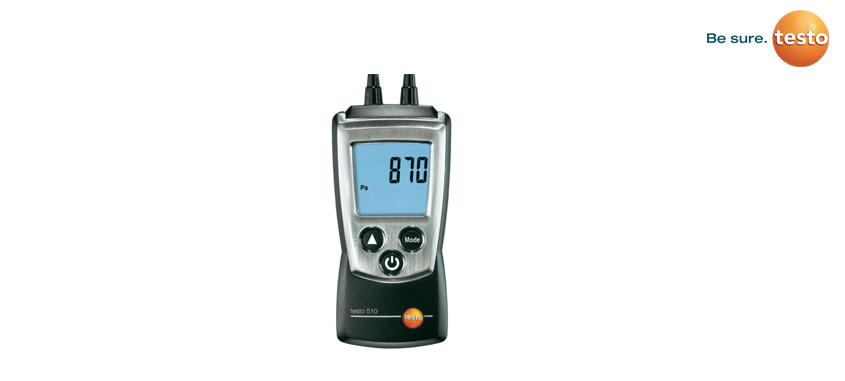

testo 510 measures differential pressure in the range from 0 to 100 hPa. The differential pressure measurement is temperature-compensated for accurate measurement values. The measurement values can be displayed in Pascal over the entire measurement range. Magnets at the rear permit free-hand work. The backlit display allows the measurement values to be easily read out, even in unfavourable light conditions. The testo 510, in combination with a Pitot tube, measures air flow velocity. For accurate measurement values, the air density can be compensated. testo 510 is very handy, small and easy to operate.
| Technical Data | |
| Differential Pressure – Piezoresistive | |
| Measuring range | 0 to 100 hPa |
| Accuracy | ±0.03 hPa (0 to 0.30 hPa) |
| ±0.05 hPa (0.31 to 1.00 hPa) | |
| ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa) | |
| Resolution | 0.01 hPa |
| General technical data | |
| Dimensions | 119 x 46 x 25 mm |
| Operating temperature | 0 to +50 °C |
| Protection class | IP40 |
| Seceltable units | hPa, mbar, Pa, mmH2O, inH2O, inHg, mmHg, psi, m/s, fpm |
| Maximal static pressure | 500 mbar |
| Measuring rate | 0.5 s |
| Battery type | 2 AAA micro batteries |
| Battery life | 50 h (average, without display illumination) |
| Storage temperature | -40 to +70 °C |
| Weight | 90 g (with batteries and protective cap) |
