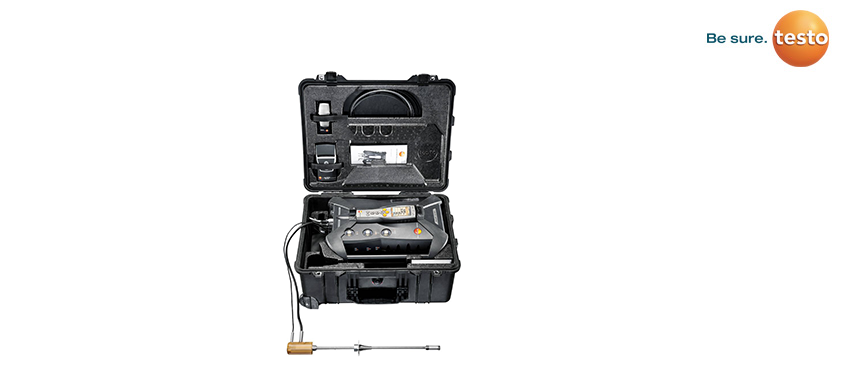

testo350 MARITIME – Exhaust gas analyzer for diesel ship engines
Product Descriptions

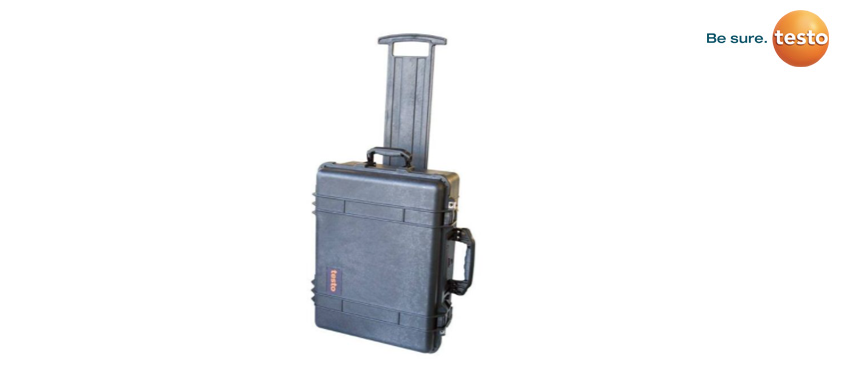

The testo 350 MARITIME exhaust gas analyzer is an instrument used to measure the emissions of various exhaust gases in marine diesel engines. It can be used to measure flue gas concentrations, including NO, NO2, SO2, CO, CO2-(IR) and O2 to meet relevant international marine regulations. The flue gas analyzer is designed to be durable. It is easy to use and has a robust case that can be easily transported. In addition, the instrument has been certified according to the international standard MARPOL Annex 6, which is a standard related to the prevention of air pollution from ships that can be caused by nitrogen oxides (NOx) or sulfur oxides (SOx) and volatile organic compounds or VOCs, etc. Including certification standards from Germanischer Lloyd (DNV GL), NOx Technical Code 2008 and Nippon Kaiji Kyokai (Class NK), users can be assured of the quality that will be obtained by using this instrument.
| Technical data | ||
| Operating temperature | +5 to +45 °C | |
| Storage temperature | -20 to +50 °C | |
| Voltage supply | Li ion rechargeable battery | |
| AC mains unit 100 V to 240 V (50 to 60 Hz) | ||
| Electrical power consumption | Max. 40 W | |
| Max. positive pressure at gas input | 50 hPa | |
| Max. negative pressure at gas input | -300 hPa | |
| Weight | Approx. 17 kg | |
| Guarantee | ||
| Measuring instrument | 2 years | |
| Gas sensors | CO, NO, NO2, SO2 : 1 year | |
| O2 : 1.5 years | ||
| CO2-IR : 2 years | ||
| Pumps | 0.5 years | |
| Solenoid valves | 0.5 years | |
| Thermocouples | 1 year | |
| Rechargeable batteries | 1 year | |
| Probes | 2 years | |
| Parameters | Measuring range | Accuracy |
| Temperature – TC Type K (NiCr-Ni) | -40 to +1000 °C | ±5 K |
| O2 | 0 to 25 Vol. % | According to to MARPOL Annex VI and NOx Technical Code |
| CO | 0 to 3000 ppm | |
| NO | 0 to 3000 ppm | |
| NO2 | 0 to 500 ppm | |
| SO2 | 0 to 3000 ppm | |
| CO2 (IR) | 0 to 40 Vol. % | |
| Absolute Pressure | 600 to 1150 hPa | ±5 hPa at +22 °C |
| ±10 hPa at -5 to +45 °C | ||
