Dew Point Sensor
Product Descriptions
Encountering humidity in your pipes is acceptable to a certain level, but you don’t want to exceed the acceptable limits. In order to stay in control of your humidity by managing your temperature and pressure levels you need dew point transmitters.

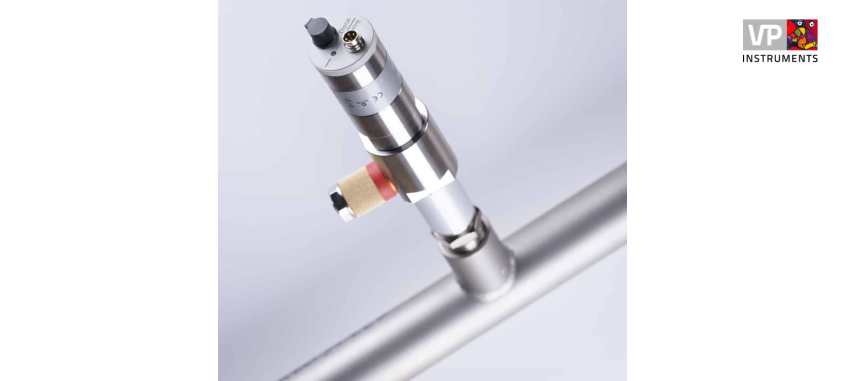

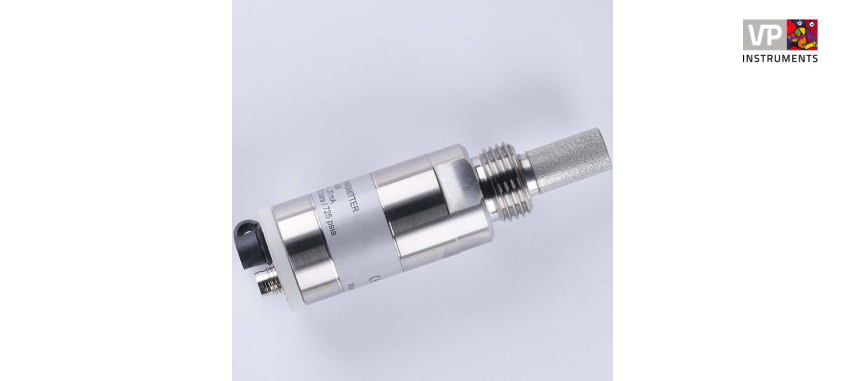

The VP Dew Point Sensor is the smart dew point transmitter with a large measurement range of -70..+60 ⁰C, so you can measure downstream a refrigerant type dryers as well as a desiccant-type dryer. The sensor has multiple outputs, alarm LED, and built-in autocalibration.
Features and benefits : VP Dew Point Sensor
• Built-in alarm function and LED
• Sensor highly resistant to condensation and particulate contamination
• RS485 (Modbus RTU) and 4..20 mA output
• Auto-calibration
• Optional display
• Optional sample block with bleed valve
Application : VP Dew Point Sensor
• Monitoring of refrigerant and desiccant-type air dryers
• Sizing of dryers
• Permanent measurement
• Guarding of critical process e.g. in semiconductor and automotive industry
| Specifications | |
| Dew point range | -70 … +60° C | -94 … 140° F dew point |
| Temperature | -40 … +60° C | -40 … 140° F |
| Humidity | 0 … 100% RH |
| Pressure | 0..50bara | 725 psia |
| Output | 4 … 20 mA and RS485 (Modbus RTU) |
| Sensor | This film polymer |
| IP | IP66 | NEMA 4 |
