Optris Compact spot finder IR camera Xi 410
Product Descriptions
The new compact infrared camera optris Xi 410 combines all the benefits of infrared cameras and infrared thermometers.
The Xi 410 has a fast Ethernet interface and can be powered by PoE. This allows for a simple installation, even if the distance from the PC is large. The built-in hot spot finder function can be used to reliably measure moving objects without having to reposition the camera. If the network connection is interrupted or if the connected PC has a problem, the camera immediatley switches to the autonomous stand-alone mode which ensures a continuous measurement and alarm. Thus the reliability of problem detection (typically exceeding a threshold in the context of monitoring a fire outbreak) is maintained. Thanks to this unique feature, the Xi 410 is ideal for all safety applications related to fire prevention, detection of critical hot spots, monitoring of industrial equipment and storage of all kinds.
The Xi 410 incorporates a motorized remote focus, controlled by the free PIX Connect software. The resolution of the camera is 384 x 240 pixels with a frame rate of 25 Hz.
Features
- Robust and compact thermal camera with motorized focus
- Autonomous operation with automatic spot finder
- Software with exclusive analysis features included

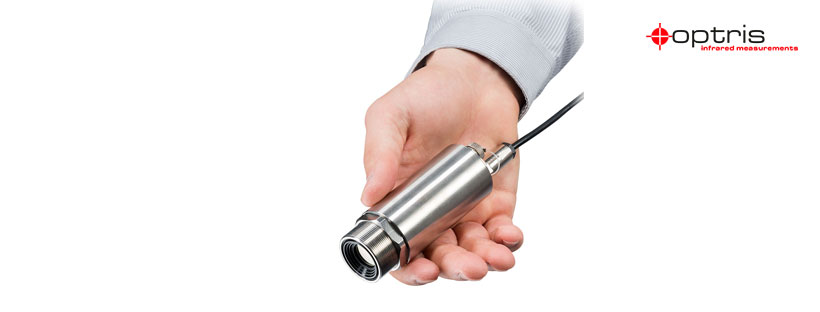

- Small sized rugged camera with motorized focus
- Temperature ranges: – 20 °C … 900 °C
- Designed for intensive use on industrial sites
- Starting at 2450 €
| Technical details of the optris Xi 410 | |
| Scope of supply | Process imager Xi 410 |
| USB cable (1 m) | |

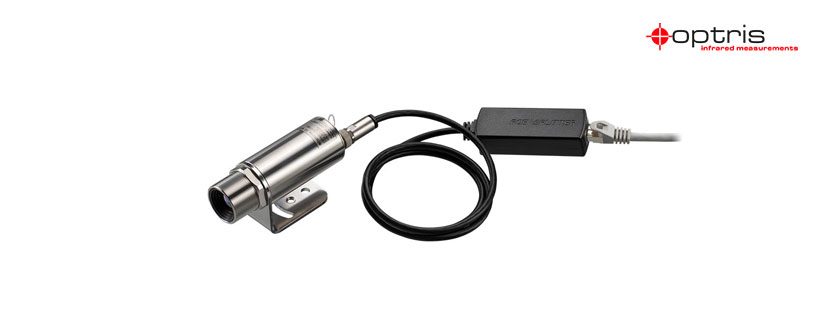

| Ethernet PoE cable (1m) | |
| Cable for output/input (1 m) incl. terminal block | |
| Software package optris PIX Connect | |

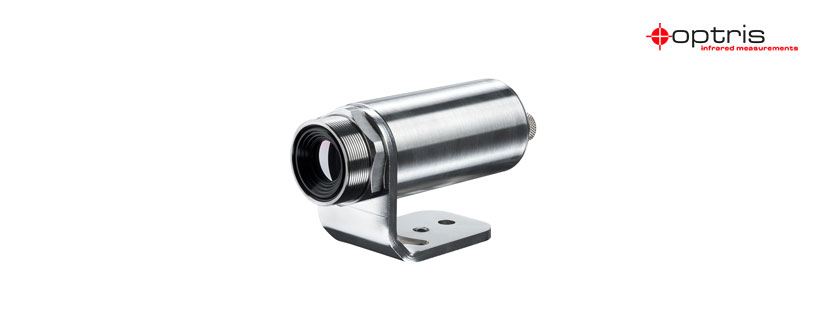

| Mounting bracket with nut | |
| Detector | FPA, uncooled (17 µm pitch) |
| Optical resolution | 384 x 240 pixels |
| Spectral range | 8 – 14 µm |
| Temperature range | -20 °C … 100 °C |
| 0 °C … 250 °C | |
| (20) 150 °C … 900 °C 1) | |
| Frame rate | Ethernet: 384 x 240 pixels @ 25 Hz USB: 384 x 240 pixels @ 4 Hz autonomous operation: 384 x 240 @ 1.5 Hz |
| Optics | 18° x 12° (f = 20) |
| 29° x 18° (f = 13) | |
| 53° x 31° (f = 8) | |
| 80° x 44° (f = 6) | |
| Focus | Manual motor focus |
| Distance-to-spot ratio | 390:1 (18° optics) |
| Thermal sensitivity (NETD) | 80 mK |
| System accuracy (at ambient temperature 23 ± 5°C): | ±2°C or ±2%, whichever is greater |
| PC interface | USB 2.0 / Fast Ethernet |
| Cable length (USB) | USB: 1 m (standard), 3m, 5 m Ethernet : 1 m (standard), 5 m, 10 m, 20 m (up to 100 m) |
| Ambient temperature (TAmb) | 0 °C…50 °C |
| Weight (without mounting bracket) | 216 – 220 g (depending on lens) |
| Shock | IEC 60068-2-27 (25 G and 50 G) |
| Vibration | IEC 60068-2-6 (sinus shaped) |
| IEC 60068-2-64 (broadband noise) | |
| Tripod mount | 1/4-20 UNC |
| Power supply | USB / PoE / 5-30 VDC |
| 1) Accuracy statement effective from 150 °C | |
| 2) For more details see operator’s manual | |
